KS 4000 i control

Technical Data

Type of movement orbital
Shaking stroke 20 mm
Permissible shaking weight (incl. attachment) 20 kg
Motor rating input 82 W
Motor rating output 24 W
Permissible ON time 100 %
Speed min (adjustable) 10 rpm
Speed range 10 – 500 rpm
Speed display LED
Speed deviation 5 ±rpm
Speed control 1 RPM steps
Timer yes
Timer display 7 segment LED
Time setting range 1 – 59940 min
Operating mode timer and continuous operation
Heating temperature range room temp. +5° – 80 °C
Heat output 1000 W
Set temperature resolution 0.1 ±K
Control accuracy with sensor (1 vessel 0.5 L H2O, RT 22°C, T=37°C) 0.5 ±K
Temperature display yes
Temp. stability (0,2l H2O; RT 25°C, T=37°C) 0.1 ±K
Operating area inner chamber 440 x 440 x 352 mm
Total volume inner chamber 90 l
Raw material housing Sheet metal powder coat
Raw material front foil polyester
Temperature stability (1 vessel 0.5 L, RT 25°C, T=37°C) 0.05 ±K
Temperature homogenity (5 vessel 0.5 L; RT 25°C, T=37°C) 0.5 ±K
Height with open hood 875 mm
Dimensions (W x H x D) 580 x 520 x 750 mm
Weight 50 kg
Permissible ambient temperature 15 – 32 °C
Permissible relative humidity 80 %
Protection class according to DIN EN 60529 IP 30
RS 232 interface yes
Voltage 230 / 115 / 100 V
Frequency 50/60 Hz
Power input 1120 W
Fuse 2x T10A 250V

Downloads

Data_Sheet_KS_4000_i_control

20000005498_3729600e_KS4000_022021_web

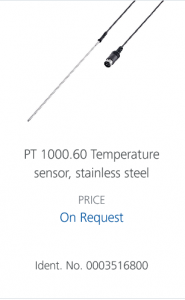

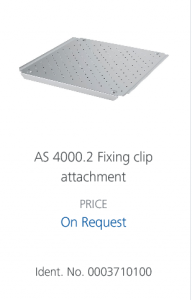

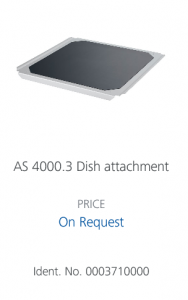

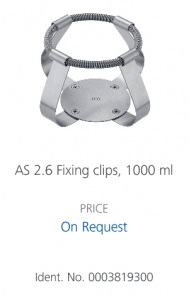

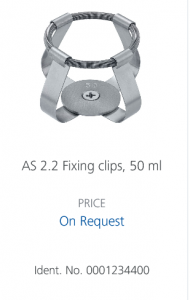

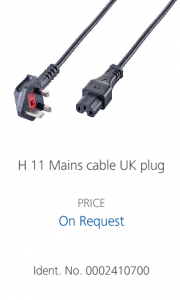

Accessories
